Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator

Ονομασία μάρκας:	SANROCK POWER
Αριθμός μοντέλου:	SPDG20KW
MOQ:	1 σετ
Τιμή:	Chat with supplier now for more details.
Πληροφορίες συσκευασίας:	Γυμνό πακέτο για μηχανήματα, ξύλινο κουτί για ανταλλακτικά ή ζήτηση πελατών.
Όροι πληρωμής:	MoneyGram,Western Union,T/T,D/P,D/A,L/C

Λεπτομέρειες

Περιγραφή του προϊόντος

Λεπτομέρειες

Τόπος καταγωγής:

Zhejiang, Κίνα

Πιστοποίηση:

CE;ISO

Document:

Όνομα προϊόντος:

ανοιχτού τύπου γεννήτρια / ανοιχτού τύπου γεννήτρια

Συχνότητα:

50Hz/60Hz

Δυναμικό:

48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 480V

Κύλινδρος:

3/4/6/12-Σύμφωνα με την εξουσία

Αριθμός κυλίνδρου:

3,4,6,8,12cylinders

Αριθμός φάσης και σύνδεση:

Σύστημα τριών φάσεων με τέσσερα καλώδια

Σύστημα ψύξης:

Υδροψύξη

Διάσταση του συνόλου (χιλ.):

1485*700*1000mm~7300*2440*2800mm

Καθαρό βάρος του συνόλου (κλ):

Διευκρινισμένος

Βαθμολογημένη ισχύς (KW/1500rpm):

5-2250KVA

Ταχύτητα:

1500/1800 σ.α.λ

Τύπος:

Τύπος ρυμουλκούμενου, σιωπηλός τύπος, τύπος εμπορευματοκιβωτίου, σούπερ σιωπηλός τύπος, ανοιχτό πλαί

Ονομαστική ισχύς:

20KW,30KW,40KW,50KW,80KW,100KW,200KW,300KW,800KW,1000KW,1200KW,1500KW,1800KW,2200KW

Εφαρμογή:

Εργοστάσιο, οικοδόμηση, αγρόκτημα, τράπεζα κ.λπ.

Χρήση:

Κοινές μονάδες, μονάδα αναμονής

Κτύπημα:

Κτύπημα τέσσερα

Επιμελητεία:

Μεταφορά ολόκληρου μηχανήματος ή μεταφορά αποσυναρμολόγησης. Θαλάσσιες ή σιδηροδρομικές μεταφορές

Δυνατότητα προσφοράς:

100000set/μήνα

Επισημαίνω:

portable diesel generator for offices

open frame diesel generator set

cost effective diesel driven generator

Περιγραφή του προϊόντος

20KW Open-Frame Standby Generator for Office Buildings
This durable 20KW open-frame generator provides a cost-effective backup power solution for office buildings, ensuring business continuity during grid outages. Designed to maintain essential operations, it offers reliable performance for critical office systems while prioritizing functionality and ease of maintenance.
Operational Advantages:
Continuous Operations: Maintains productivity during power interruptions
System Protection: Prevents data loss and hardware damage from sudden outages
Safety Compliance: Supports life safety systems per building codes
Cost-Effective: More affordable than enclosed models with reliable performance
Easy Maintenance: Accessible design simplifies servicing and inspections
Building Integration: The generator's robust steel frame provides durability while allowing excellent ventilation for continuous operation. While requiring installation in a designated equipment area due to its open design, it delivers dependable power for extended periods. Compatible with automatic transfer switches for seamless power transition during outages.
This 20KW solution represents an optimal balance of performance and value for office buildings seeking reliable backup power while maintaining budget considerations.
Key Office Applications:
Emergency lighting systems and exit signs
Elevator emergency operation circuits
Security systems, access control, and surveillance equipment
Server rooms, network infrastructure, and communication systems
Critical workstations and essential office equipment

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator 12

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator 13

Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant,
Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company.

Product descriptions from the supplier
100KVA 150KVA 200KVA 300KVA 400KVA 500KVA 700KVA Diesel Genset
"Contact us for specific product details or customized requirements"

Product Description

Technical parameters of diesel generator set
Generator set model:SPDG20KW
Steady state voltage adjustment rate (%):≤± 1
Generator power:20kW/25kVA
Voltage fluctuation rate (%):≤ ± 0.5
Power factor:COSΦ = 0.8 (lagging)
Transient voltage adjustment rate (%):＋20 ～－15
Output voltage:400V/230V
Voltage stabilization time (s):≤1
Generator set current:36A
Steady state frequency adjustment rate (%):≤ ± 1
Rated frequency:50Hz
Frequency fluctuation rate (%):≤ ± 0.5
Rated speed:1500rpm
Transient frequency adjustment rate (%):+ 10 ~ -7
Fuel grade:(standard) 0 # light diesel (normal temperature)
Frequency stabilization time (S):≤3
Diesel generator size:1620*620*1380(L*W*H mm
Diesel generator fuel consumption (100% load):224g/kW·h
Diesel generator weight:600kg
Diesel generator volume(LP7m):95dB(A)
Technical parameters of diesel engine
Cooling method: Closed water-cooling
Oil supply method: direct injection
Engine cylinder number: 4 / L Type
Speed regulation method: Mechanical
Bore stroke: 102*120mm
Intake method: Natural inhalation
Compression ratio: 16.5:1
Overload capacity: 110%
Start method:DC 24V Electric start
Diesel engines Speed: 1500rpm
Technical parameters of generator
Protection level:IP22
Wiring mode:Three-phase four-wire, Y-connection
Generator power: 20kW/25kVA
Adjustment method: AVR (Automatic Voltage Regulator)
Rated voltage: 400V / 230V
Output frequency: 50Hz
Insulation class: H class
Output factor: COSΦ = 0.8 (lag)

Product Name	Diesel generator
Engine	customized
Alternator	customized
Protection	genset shotdown when high water temperature,low oil pressure,shortcuit
Rated Power	20KW,30KW,40KW,50KW,80KW,100KW,200KW,300KW,800KW,1000KW,1200KW,1500KW, 1800KW,2200KW
Cylinder number	3,4,6,8,12cylinders
Cooling System Type	Water Cooling System
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Rated Voltage	48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 480V
Speed	1500/1800
Frequency	50/60HZ
Diesel Engine	UK, USA, German, Japanese brand engines,4 stroke,water cooled
Alternator model	Stamford/Mecc alte brushless self-excited,IP23,Class H.
Power factor	0.8lagging
Noise level dB(a)	65-95/1m
Excitation	self-excitation
Phase Number and connection	3-phase 4-wire system
Dimension of set (mm)	*14857001000mm~730024402800mm*

Customizable Options: SANROCK POWER Machinery Co., Ltd., offers various customization options for their products, including different genset power and frequency settings. This flexibility allows users to select the most appropriate equipment for their specific requirements, ensuring optimal performance and energy efficiency.

SANROCK POWER Machinery is committed to offering competitive prices without compromising on quality. Their products come with a 3-year warranty period, which provides customers with the assurance and peace of mind necessary to confidently purchase and utilize their generators.

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator 14

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator 15

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator 16

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator 17

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator 18

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator 19

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator 20

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator 21

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator 22

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator 23

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator 24

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator 25

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator 26

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator 27

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator 28

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator 29

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator 30

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator 31

FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

2.what can you buy from us?
Screw Air Compressor,Reefer Container Generator,Diesel Generator,Light Tower,Sewage Pump,Centrifugal Pump,Fire Pump System,Mobile Pump Truck

3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish

Ετικέτες:

ανοικτή γεννήτρια diesel τύπων

ανοιχτό γεννήτη

Ανοικτό σύνολο γεννητριών

Συγγενικά προϊόντα

Βίντεο

Manufacturer Diesel Engine Generator Set 220V Rated Voltage Diesel Powered Generator Portable Generators Diesel

Πάρτε την καλύτερη τιμή

Βίντεο

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator

Πάρτε την καλύτερη τιμή

Βίντεο

Open Frame Diesel Generators Mobile Diesel Generator Water Cooled Commonly Used Small Diesel Generator Set

Πάρτε την καλύτερη τιμή

Βίντεο

Portable Diesel Generator Single Cylinder Diesel Generator High Performance Open Frame Diesel Generator

Πάρτε την καλύτερη τιμή

Βίντεο

Diesel Generator Set Data Centers Emergency Diesel Driven Generator Trailer Mounted Diesel Generator

Πάρτε την καλύτερη τιμή

λεπτομέρειες για τα προϊόντα

Σπίτι > προϊόντα >

Ανοικτή γεννήτρια diesel πλαισίων

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator

Όλες οι κατηγορίες

Γεννήτρια ντίζελ

Ανοικτή γεννήτρια diesel πλαισίων

Σιωπηλή γεννήτρια diesel

Γεννήτης Reefer

Mobile Light Tower

φωτεινός πύργος ντίζελ

κινητός ηλιακός πύργος φωτισμού

Σύνολο υδραντλιών

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator

Ονομασία μάρκας:	SANROCK POWER
Αριθμός μοντέλου:	SPDG20KW
MOQ:	1 σετ
Τιμή:	Chat with supplier now for more details.
Πληροφορίες συσκευασίας:	Γυμνό πακέτο για μηχανήματα, ξύλινο κουτί για ανταλλακτικά ή ζήτηση πελατών.
Όροι πληρωμής:	MoneyGram,Western Union,T/T,D/P,D/A,L/C

Λεπτομέρειες

Περιγραφή του προϊόντος

Λεπτομέρειες

Τόπος καταγωγής:

Zhejiang, Κίνα

Μάρκα:

SANROCK POWER

Πιστοποίηση:

CE;ISO

Αριθμό μοντέλου:

SPDG20KW

Document:

Diesel Generators.pdf

Όνομα προϊόντος:

ανοιχτού τύπου γεννήτρια / ανοιχτού τύπου γεννήτρια

Συχνότητα:

50Hz/60Hz

Δυναμικό:

48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 480V

Κύλινδρος:

3/4/6/12-Σύμφωνα με την εξουσία

Αριθμός κυλίνδρου:

3,4,6,8,12cylinders

Αριθμός φάσης και σύνδεση:

Σύστημα τριών φάσεων με τέσσερα καλώδια

Σύστημα ψύξης:

Υδροψύξη

Διάσταση του συνόλου (χιλ.):

1485*700*1000mm~7300*2440*2800mm

Καθαρό βάρος του συνόλου (κλ):

Διευκρινισμένος

Βαθμολογημένη ισχύς (KW/1500rpm):

5-2250KVA

Ταχύτητα:

1500/1800 σ.α.λ

Τύπος:

Τύπος ρυμουλκούμενου, σιωπηλός τύπος, τύπος εμπορευματοκιβωτίου, σούπερ σιωπηλός τύπος, ανοιχτό πλαί

Ονομαστική ισχύς:

20KW,30KW,40KW,50KW,80KW,100KW,200KW,300KW,800KW,1000KW,1200KW,1500KW,1800KW,2200KW

Εφαρμογή:

Εργοστάσιο, οικοδόμηση, αγρόκτημα, τράπεζα κ.λπ.

Χρήση:

Κοινές μονάδες, μονάδα αναμονής

Κτύπημα:

Κτύπημα τέσσερα

Επιμελητεία:

Μεταφορά ολόκληρου μηχανήματος ή μεταφορά αποσυναρμολόγησης. Θαλάσσιες ή σιδηροδρομικές μεταφορές

Ποσότητα παραγγελίας min:

1 σετ

Τιμή:

Chat with supplier now for more details.

Συσκευασία λεπτομέρειες:

Γυμνό πακέτο για μηχανήματα, ξύλινο κουτί για ανταλλακτικά ή ζήτηση πελατών.

Χρόνος παράδοσης:

18-30 εργάσιμες ημέρες αποστολής και ημερομηνία παράδοσης που θα διαπραγματευτεί.

Όροι πληρωμής:

MoneyGram,Western Union,T/T,D/P,D/A,L/C

Δυνατότητα προσφοράς:

100000set/μήνα

Επισημαίνω:

portable diesel generator for offices

open frame diesel generator set

cost effective diesel driven generator

Περιγραφή του προϊόντος

20KW Open-Frame Standby Generator for Office Buildings
This durable 20KW open-frame generator provides a cost-effective backup power solution for office buildings, ensuring business continuity during grid outages. Designed to maintain essential operations, it offers reliable performance for critical office systems while prioritizing functionality and ease of maintenance.
Operational Advantages:
Continuous Operations: Maintains productivity during power interruptions
System Protection: Prevents data loss and hardware damage from sudden outages
Safety Compliance: Supports life safety systems per building codes
Cost-Effective: More affordable than enclosed models with reliable performance
Easy Maintenance: Accessible design simplifies servicing and inspections
Building Integration: The generator's robust steel frame provides durability while allowing excellent ventilation for continuous operation. While requiring installation in a designated equipment area due to its open design, it delivers dependable power for extended periods. Compatible with automatic transfer switches for seamless power transition during outages.
This 20KW solution represents an optimal balance of performance and value for office buildings seeking reliable backup power while maintaining budget considerations.
Key Office Applications:
Emergency lighting systems and exit signs
Elevator emergency operation circuits
Security systems, access control, and surveillance equipment
Server rooms, network infrastructure, and communication systems
Critical workstations and essential office equipment

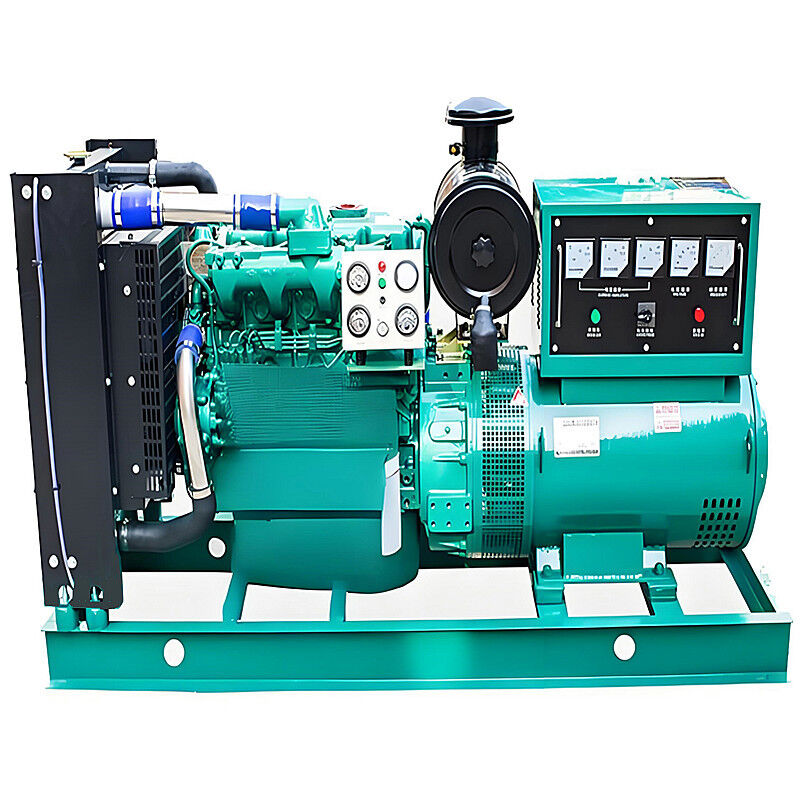

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator 12

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator 13

Product descriptions from the supplier
100KVA 150KVA 200KVA 300KVA 400KVA 500KVA 700KVA Diesel Genset
"Contact us for specific product details or customized requirements"

Product Description

Product Name	Diesel generator
Engine	customized
Alternator	customized
Protection	genset shotdown when high water temperature,low oil pressure,shortcuit
Rated Power	20KW,30KW,40KW,50KW,80KW,100KW,200KW,300KW,800KW,1000KW,1200KW,1500KW, 1800KW,2200KW
Cylinder number	3,4,6,8,12cylinders
Cooling System Type	Water Cooling System
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Rated Voltage	48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 480V
Speed	1500/1800
Frequency	50/60HZ
Diesel Engine	UK, USA, German, Japanese brand engines,4 stroke,water cooled
Alternator model	Stamford/Mecc alte brushless self-excited,IP23,Class H.
Power factor	0.8lagging
Noise level dB(a)	65-95/1m
Excitation	self-excitation
Phase Number and connection	3-phase 4-wire system
Dimension of set (mm)	*14857001000mm~730024402800mm*
